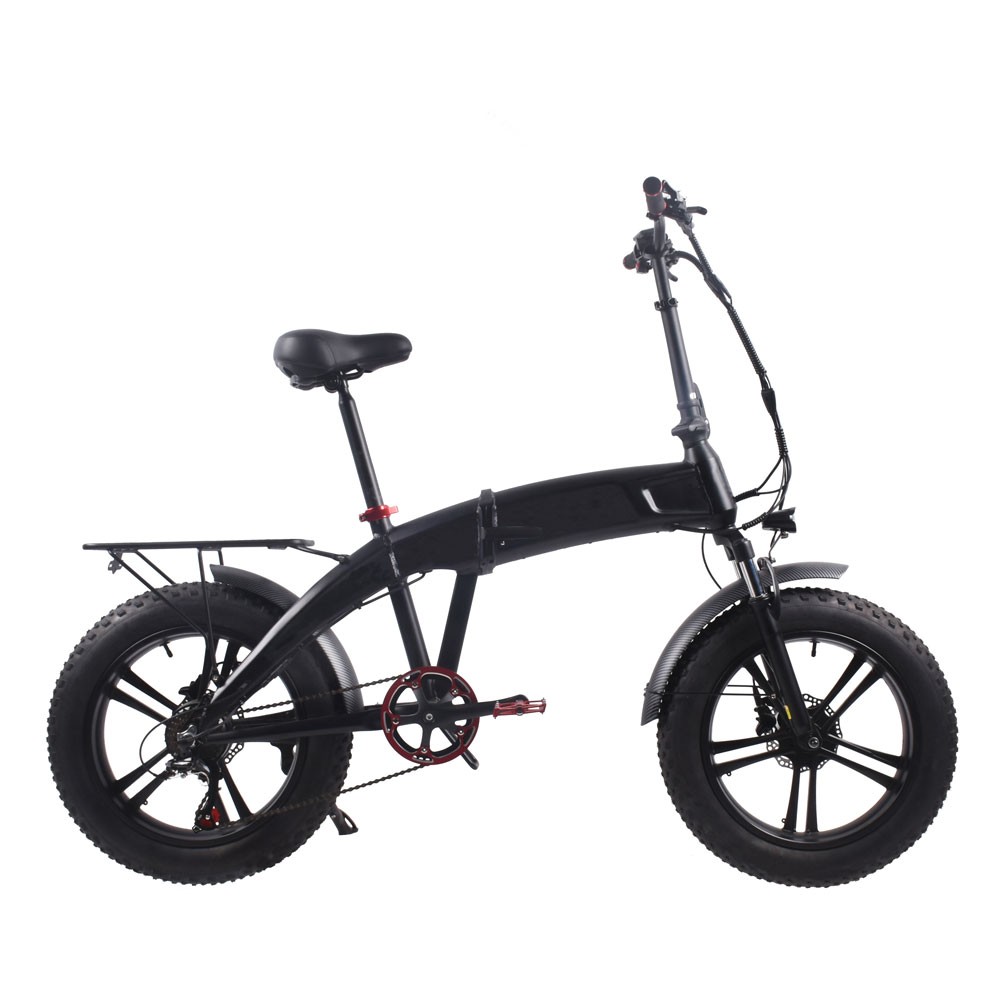

250W rear motor 48V11.6AH lithium battery fat tire electric assist bicycle #HF1320FM

SPECIFICATION:

Model: HF1320FM

Frame: 20'' aluminum alloy 6061

Motor: 250W48V high speed brushless rear motor

Battery: 48V10AH(480WH), lithium battery

Brake: Mechanical disc brake

Wheel: 20*4.0, fat tire, CST

Display: LCD, digital display

Derailleur: SHIMANO 7 speed

Front fork: Suspension fork

Charger: 48V2A

Light: LED headlight

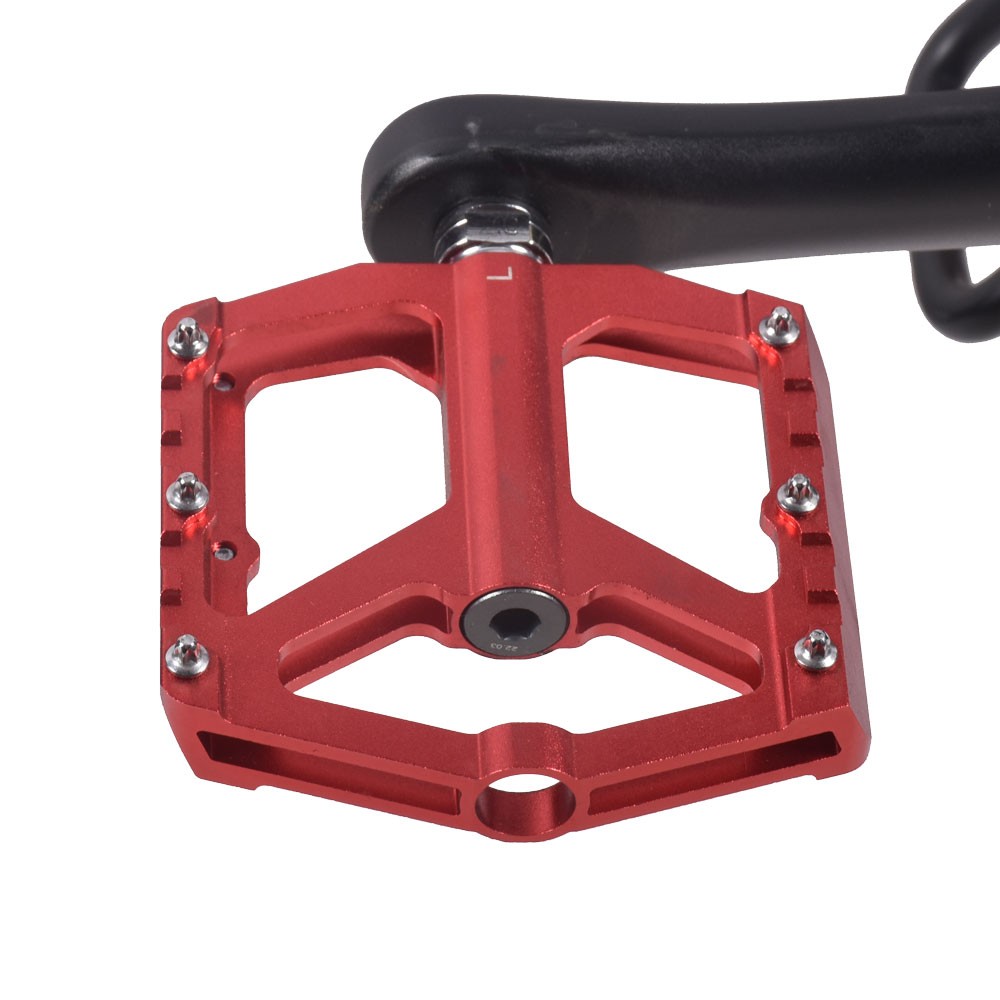

Pedal: Aluminum alloy

Range: PAS 30-50km

Speed: 25 km/h

Charge time: 4-6h

N.W./G.W.: 29kg / 34kg

Load capacity: 120kg

Packing: Carton box, 140*34*70cm

Container: 20GP/72pcs, 40HQ: 192pcs

RIDE MODE:

1- Electric mode (optional)

2- PAS mode

3- Exercise mode

OPTION:

1- Battery: 36V10AH / 48V8AH / 48V10AH

2- Motor: 250W / 350W / 500W

3- Brake: Mecahnical brake / hydraulic brake

4- Display: LED / LCD

5- Derailleur: SHIMANO 6 speed / SHIMANO 7 speed

6- Fork: Steel fork / suspension fork

7- Wheel: KENDA / CST / CHAOYANG

8- Charger: 48V2A / 48V3A

9- Pedal: Aluminum alloy / plastic

PACKING:

1- Ebike

2- Battery charger

3- Pedal

4- Tool

5- Usage manual
